Copper and Nickel Brazed Plate Heat Exchanger

EWT-B3-12



Plate Material: 1.4301; AISI 304 (V2A)
Braze Material: 99,9 % Copper
Length x Width: 191 mm x 73 mm
Connectors:   2 x G 1/2" Male and 2 x G 3/4" Male
Operating pressure:

Maximum 30 bar

  Area: Weight: Height: Delivery time: Pieces: Price:

12 Plates

0,12 m²

0,9 kg

34+20 mm

2-5 days


 69,00 ¤
20 Plates 0,22 m² 1,3 kg 52+20 mm 2-5 days  84,00 ¤
30 Plates 0,34 m² 1,7 kg 74+20 mm 2-5 days  99,00 ¤
50 Plates 0,58 m² 2,6 kg 119+20 mm 2-5 days 129,00 ¤

Substitutee for Kaori K025 - 205mm x 73mm / K030 - 194mm x 80mm; Baode BL14 - 206mm x 76mm; Zilmet ZB10 - 190mm x 77mm
Swep B5 - 187mm x 72mm; Alfa Laval AC16 - 210mm x 74mm / APX10 / APX14 190mm x 76mm


EWT-N4-10
Nickel brazed plate heat exchanger
Suitable for demineralized water,  ammonia - NH3, galvanized piping, Laser-cooling






Plate Material: 1.4401; AISI 316 (V4A)
Braze Material: Nickel
Length x Width: 194 mm x 80 mm
Connectors:   4 x G 3/4" Male
Operating pressure:

Maximum 10 bar

  Area: Weight: Height: Delivery time: Pieces: Price:

10 Plates

0,09 m²

1,3 kg

33+27 mm

2-5 days


 194,00 ¤
20 Plates 0,21 m² 1,8 kg 55+27 mm 2-5 days  245,00 ¤
30 Plates 0,33 m² 2,3 kg 77+27 mm 2-5 days  320,00 ¤
50 Plates 0,56 m² 3,3 kg 114+27 mm 2-5 days  480,00 ¤

Substitutee for Kaori K025 - 205mm x 73mm / K030 - 194mm x 80mm; Baode BL14 - 206mm x 76mm; Zilmet ZB10 - 190mm x 77mm
Swep B5 - 187mm x 72mm; Alfa Laval AC16 - 210mm x 74mm / APX10 / APX14 190mm x 76mm


EWT-B3-23



Plate Material: 1.4301; AISI 304 (V2A)
Braze Material: 99,9 % Copper
Length x Width: 315 mm x 73 mm
Connectors:   2 x G 1/2" Male and 2 x G 1" Male
Operating pressure:

Maximum 30 bar

  Area: Weight: Height: Delivery time: Pieces: Price:

3
0 Plates

0,64 m²

2,5 kg

74+20 mm

2-5 days


136,00 ¤
40 Plates 0,87 m² 3,2 kg 97+20 mm 2-5 days 155,00 ¤
50 Plates 1,10 m² 3,9 kg 119+20 mm 2-5 days 174,00 ¤

Substitutee for Kaori K040 - 311mm x 73mm; Baode BL20 - 310mm x 76mm; Zilmet ZB30 - 315mm x 78mm
Swep B8 - 310mm x 72mm; Alfa Laval AC18 / CB18 - 316mm x 74mm


EWT-WP-23
For split air conditioners and heat pumps



Otimized for:

R404A, R407C,
R410A und R507









Plate Material: 1.4301; AISI 304 (V2A)
Braze Material: 99,9 % Copper
Length x Width: 315 mm x 73 mm
Connectors:   F1: 3/8 inch flare
F3: 1/2 inch flare
F2 and F4: G 3/4 " Male
Operating pressure:

Maximum 45 bar   /   97/23EG 30 bar

  Area / BTU: Delivery time: Pieces: Price:

3
0 Plates

 0,64 m² /  bis 10.000 BTU / 3 kW

2-5 days


146,00 ¤
40 Plates  0,87 m² /  bis 14.000 BTU / 4,5 kW 2-5 days 164,00 ¤
50 Plates 1,10 m² /  bis 18.000 BTU / 6 kW 2-5 days 182,00 ¤

Substitute for Kaori K040 - 311mm x 73mm; Baode BL20 - 310mm x 76mm; Zilmet ZB30 - 315mm x 78mm
Swep B8 - 310mm x 72mm; Alfa Laval AC18 - 316mm x 74mm


EWT-B3-32



Plate Material: 1.4301; AISI 304 (V2A)
Braze Material: 99,9 % Copper
Length x Width: 286 mm x 116 mm
Connectors:   4 x G 1" Male
Operating pressure:

Maximum 30 bar

  Area: Weight: Height: Delivery time: Pieces: Price:

20 Plates

0,58 m²

3,9 kg

55+20 mm

2-5 days


199,00 ¤
30 Plates 0,90 m² 5,0 kg 77+20 mm 2-5 days 219,00 ¤
40 Plates 1,22 m² 6,2 kg 106+20 mm 2-5 days 245,00 ¤
50 Plates 1,54 m² 7,5 kg 124+20 mm 2-5 days 296,50 ¤

Substitute for Kaori K050 - 306mm x 106mm; Baode BL26 - 310mm x 111mm; Zilmet ZB35 - 310mm x 112mm
Swep B10T - 289mm x 119mm / B12 - 287mm x 117mm; Alfa Laval AC30 / CB30 - 325mm x 95mm


EWT-B4-32
Increased corrosion resistance



Plate Material: 1.4401; AISI 316 (V4A)
Braze Material: 99,9 % Copper
Length x Width: 286 mm x 116 mm
Connectors:   4 x G 1" Male
Operating pressure:

Maximum 30 bar

  Area: Weight: Height: Delivery time: Pieces: Price:

20 Plates

0,58 m²

3,9 kg

55+20 mm

2-5 days


299,00 ¤
30 Plates 0,90 m² 5,0 kg 77+20 mm 2-5 days 349,00 ¤
40 Plates 1,22 m² 6,2 kg 106+20 mm 2-5 days 399,00 ¤
50 Plates 1,54 m² 7,5 kg 124+20 mm 2-5 days 449,00 ¤

Substitute for Kaori K050 - 306mm x 106mm; Baode BL26 - 310mm x 111mm; Zilmet ZB35 - 310mm x 112mm
Swep B10T - 289mm x 119mm / B12 - 287mm x 117mm; Alfa Laval AC30 / CB30 - 325mm x 95mm



EWT-N4-30
Nickel brazed plate heat exchanger
Suitable for demineralized water,  ammonia - NH3, galvanized piping,
laser-cooling



Plate Material: 1.4401; AISI 316 (V4A)
Braze Material: Nickel
Length x Width: 306 mm x 106 mm
Connectors:   4 x G 1" Male
Operating pressure:

Maximum 10 bar

  Area: Weight: Height: Delivery time: Pieces: Price:

30 Plates

0,71 m²

6,5 kg

82+27 mm

2-5 days


 569,00 ¤
40 Plates 0,97 m² 7,5 kg 106+27 mm 12 Weeks  620,00 ¤
50 Plates 1,22 m² 8,5 kg 130+27 mm 12 Weeks  694,00 ¤

Substitute for Kaori K025 - 205mm x 73mm / K030 - 194mm x 80mm; Baode BL14 - 206mm x 76mm; Zilmet ZB10 - 190mm x 77mm
Swep B5 - 187mm x 72mm; Alfa Laval AC16 - 210mm x 74mm / APX10 / APX14 190mm x 76mm

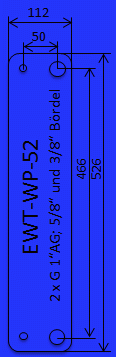

EWT-WP-52
For split air conditioners and heat pumps





Otimized for:
R404A
R407C
R410A
R507

Plate Material: 1.4301; AISI 304 (V2A)
Braze Material: 99,9 % Copper
Length x Width: 526 mm x 112 mm
Connectors:   F1: 5/8 Zoll Bördelanschluss
F3: 3/8 Zoll Bördellanschluss
F2 und F4: G 1 " Male
Operating pressure:

Maximum 45 bar   /   97/23EG 30 bar

  Area / Power : Height: Delivery time: Pieces: Price:

2
0 Plates

0,94 m² / bis ca.  8 kW

55+20 mm

2-5 days


284,00 ¤
30 Plates 1,46 m² / bis ca. 12 kW 77+20 mm 2-5 days 337,00 ¤
40 Plates 1,98 m² / bis ca. 16 kW 106+20 mm 2-5 days 396,00 ¤
50 Plates 2,50 m² / bis ca. 20 kW 124+20 mm 2-5 days 459,00 ¤

Substitute for Kaori K095 - 522mm x 106mm / K105 - 504mm x 124mm; Baode BL50 - 526mm x 111mm; Zilmet ZB60 - 525mm x 119mm
Swep B28 - 526mm x 119mm; Alfa Laval AC70 - 526mm x 112mm / CB60 - 527mm x 113mm

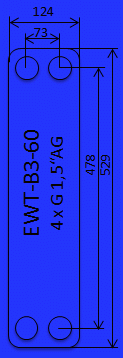

EWT-B3-60


Plate Material: 1.4301; AISI 304 (V2A)
Braze Material: 99,9 % Copper
Length x Width: 529 mm x 124 mm
Connectors:   4 x G 1,5" Male
Operating pressure:

Maximum 30 bar

  Area: Weight: Height: Delivery time: Pieces: Price:

3
0 Plates

1,68 m²

10,8 kg

79+20 mm

2-5 days


449,-  349,00 ¤
40 Plates 2,28 m² 13,4 kg 116+20 mm 2-5 days 519,-  449,00 ¤
50 Plates 2,88 m² 16,0 kg 130+20 mm 2-5 days 599,-  544,00 ¤
60 Plates 3,48 m² 18,6 kg 150+20 mm 2-5 days 759,-  624,00 ¤

Substitute for Kaori K095 - 522mm x 106mm / K105 - 504mm x 124mm; Baode BL50 - 526mm x 111mm; Zilmet ZB60 - 525mm x 119mm
Swep B28 - 526mm x 119mm; Alfa Laval CB62 - 531mm x 115mm



EWT-B4-60

Increased corrosion resistance


Plate Material: 1.4401; AISI 316 (V4A)
Braze Material: 99,9 % Copper
Length x Width: 529 mm x 124 mm
Connectors:   4 x G 1,5" Male
Operating pressure:

Maximum 30 bar

  Area: Weight: Height: Delivery time: Pieces: Price:

3
0 Plates

1,68 m²

10,8 kg

79+20 mm

2-5 days


504,00 ¤
40 Plates 2,28 m² 13,4 kg 116+20 mm 2-5 days 649,00 ¤
50 Plates 2,88 m² 16,0 kg 130+20 mm 2-5 days 739,00 ¤
60 Plates 3,48 m² 18,6 kg 150+20 mm 2-5 days 884,00 ¤

Substitute for Kaori K095 - 522mm x 106mm / K105 - 504mm x 124mm; Baode BL50 - 526mm x 111mm; Zilmet ZB60 - 525mm x 119mm
Swep B28 - 526mm x 119mm; Alfa Laval CB62 - 531mm x 115mm



EWT-N4-60

Nickel brazed plate heat exchanger
Suitable for demineralized water,  ammonia - NH3, galvanized piping,
laser-cooling



Plate Material: 1.4401; AISI 316 (V4A)
Braze Material: Nickel
Length x Width: 504 mm x 124 mm
Connectors:   4 x G 1" Male
Operating pressure:

Maximum 10 bar

  Area: Weight: Height: Delivery time: Pieces: Price:

3
0 Plates

1,5 m²

11,9 kg

 82+27 mm

2-5 days


  989,00 ¤
40 Plates 2,0 m² 14,6 kg 106+27 mm 12 Weeks 1340,00 ¤
50 Plates 2,5 m² 17,4 kg 130+27mm 2-5 days 1620,00 ¤
60 Plates 3,1 m² 20,1 kg 154+27 mm 12 Weeks 1840,00 ¤

Substitute for Kaori K095 - 522mm x 106mm / K105 - 504mm x 124mm; Baode BL50 - 526mm x 111mm; Zilmet ZB60 - 525mm x 119mm
Swep B28 - 526mm x 119mm; Alfa Laval CB62 - 531mm x 115mm




EWT-WP-60




Special offer for heat pumps



Technical Drawing

Plate Material: 1.4301; AISI 304 (V2A)
Braze Material: 99,9 % Copper
Length x Width: 529 mm x 124 mm
Connectors:   F1: 16mm solder, F2: G 1" Male
F3: 28mm solder, F4: G 1" Male
Operating pressure: Maximum 45 bar   /   97/23EG 30 bar
  Area: Weight: Height: Delivery time: Pieces: Price:

4
0 Plates

2,28 m²

13,4 kg

136 mm

2-5 days


519,-  459,00 ¤
50 Plates 2,88 m² 16,0 kg 160 mm 2-5 days 599,-  496,00 ¤
60 Plates 3,48 m² 18,6 kg 184 mm 2-5 days 759,-  582,00 ¤


EWT-BL-95




Plate Material: AISI 316 (V4A)
Braze Material: 99,9 % Copper
Length x Width: 616 mm x 191 mm
Connectors:   4 x G 2" Male
Operating pressure:

Maximum 30 bar

  Area: Weight: Height: Delivery time: Pieces: Price:

4
0 Plates

3,61 m²

29,0 kg

122+48 mm

2-5 days


 769,00 ¤
50 Plates 4,56 m²  32,0 kg 150+48 mm 8-12 Weeks  824,00 ¤
60 Plates 5,51 m²  34,2 kg 176+48 mm    2 - 5 days  990,00 ¤
70 Plates 6,46 m²  37,5 kg 210+48 mm 8-12 Weeks 1239,00 ¤
80 Plates 7,41 m²  41,0 kg 240+48 mm 2-5 days 1469,00 ¤

Substitute for Kaori K200 - 613mm x 186mm; Baode BL95 - 616mm x 192mm





EWT-BL-200





Plate Material: AISI 316 (V4A)
Braze Material: 99,9 % Copper
Length x Width: 738 mm x 321 mm
Connectors:   4 x G 2" Male
Operating pressure:

Maximum 30 bar

  Area: Weight: Height: Delivery time: Pieces: Price:

4
0 Plates

7,60 m²
45 kg
117+48 mm

2-5 days


 1690,00 ¤
62 Plates 12,0 m²  63 kg  176+48 mm 2-5 days  2390,00 ¤
Substitute for Kaori Z400 - 751mm x 321mm, Alfa Laval CB200 622mm x 323mm



PUR - Insulating


Material: PUR - Polyurethane (rigid foam)
Material thickness: 20 mm
Thermal conductivity: 0,0029 W / (m*K)
Max. Temp:   130 °C
Fixing: Pins and velcro
  Interior dimensions [mm]
Useable for: L: B: H: Delivery time: Pieces: Price:

B3-12 / 20 and 12 Plates

194

76

61

2-5 days


 22,00 ¤
B3-12 / 30 Plates 194  76 83 2-5 days  24,00 ¤
B3-12 / 50 Plates 194  76 131 2-5 days  32,00 ¤
B3-23 / 40 and 30 Plates 319  76 106 2-5 days  34,00 ¤
B3-32 / 30 and 20 Plates 295 120 89 2-5 days  38,00 ¤
B3-32 / 50 and 40 Plates 295 120 139 2-5 days  42,00 ¤
B3-60 / 30 Plates 536 120 89 2-5 days  54,00 ¤
B3-60 / 50 and 40 Plates 536  120 139 2-5 days  58,00 ¤


3/2-way magnetic valve

Material: Duraluminium, Viton
Nominal width: 13 mm
Ambient temperatue: - 20°C up to + 60 °C
Media temperature.: - 20°C up to 130 °C
Protection: IP 54
Connections: G 3/8" Female
    Delivery time: Pieces: Price:
12 Volt DC
   99,00 ¤

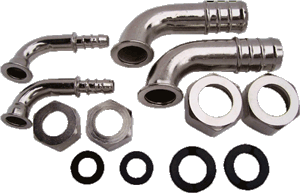

Connector  for G 1/2" - 8mm hose


Material: copper nickel platted

Hose couplings: Delivery time: Pieces: Price:


2-5 days


 19,90 ¤



Adapter / Fitting



Material: brass

  Von: Auf: Delivery time: Pieces: Price:

Extension:

G 1/2" Male
G 3/4" Male


3,40 ¤
  G 3/4" Male G 1" Male 3,85 ¤
  G 1" Male G 5/4" Male 4,50 ¤
Reduction: G 3/4" Male G 1/2" Male 4,20 ¤
  G 1" Male  G 3/4" Male 4,95 ¤
