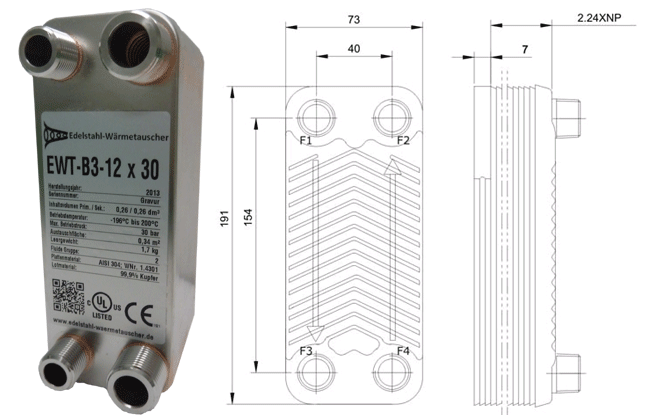

Model: EWT-B3-12 |
||
 |
||
| Standard connectors | 2 x 1/2" male and 2 x 3/4" male (DIN 259 / ISO 228 - G) | |
| Area per plate | 0.012 m2 | |
| Maximum flow (water) | 4 m3/h | |
| Plate material |
WNr. 1.4301 (X5CrNi18-10), AISI 304 (V2A) StandardWNr. 1.4401, AISI 316L |
|
| Braze material | 99.9% copper | |
| Plate thickness | 0.3 mm |
|
| Volume per chamber | 0.018 dm³ | |
| Max. number of plates | 60 | |
| Design pressure | 1.0MPa 3.0MPa | |
| Test pressure | 2.0MPa 4.5MPa | |
| Temperature range | -196°C up to +200°C | |
